Your Premier Cold Room Panels Manufacturer in China

The Yuyan cold room panel feature robust construction with two layers of corrosion-resistant pre-painted galvanized steel sheet (PPGI), SUS 304/316 or Aluminum Embossed Stucco Sheet, encapsulating a core of high pressure injected, single-application PIR (Polyisocyanurate) or PU (Polyurethane) foam. This created a high-strength insulation panel with superior thermal performance.

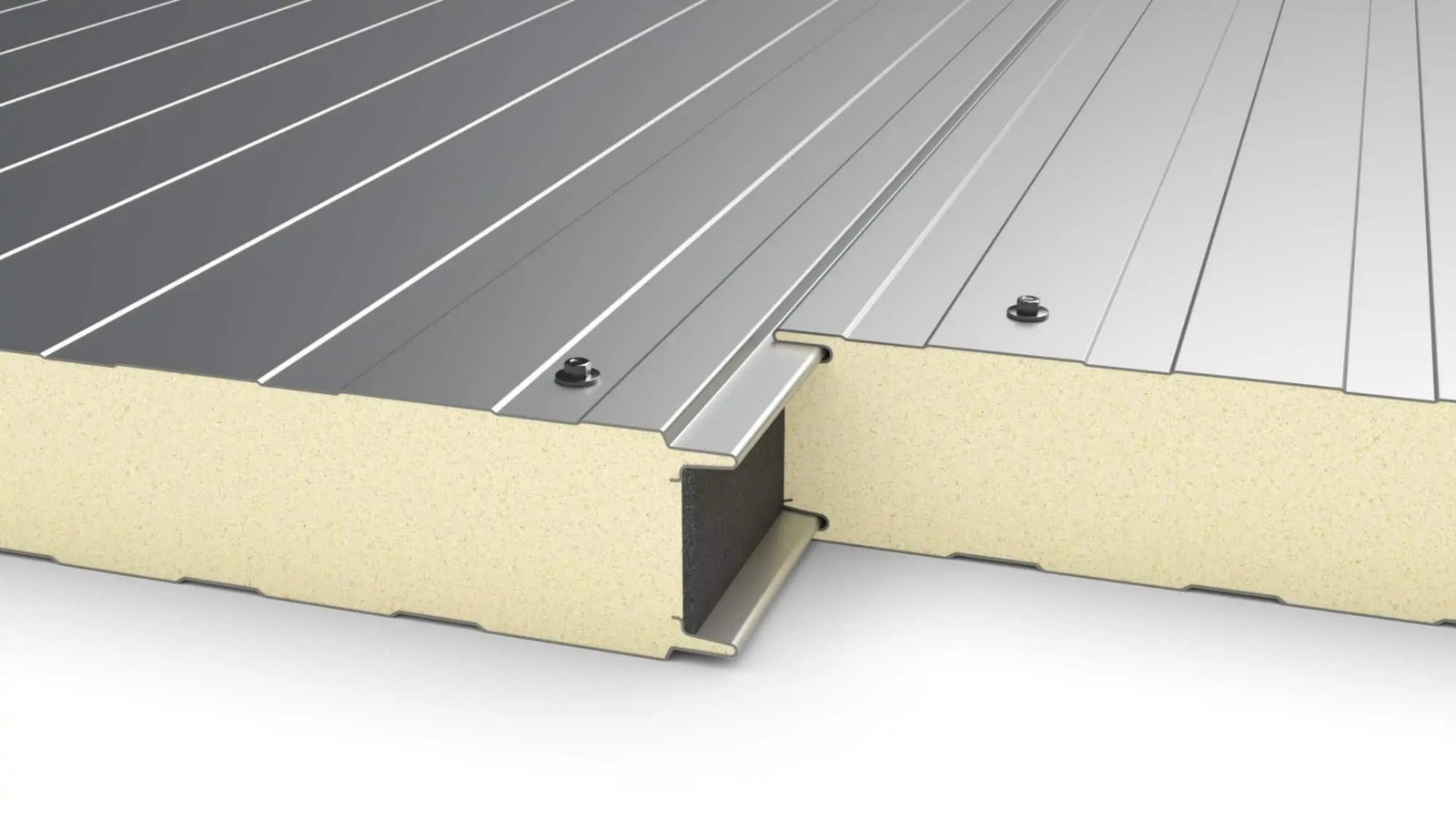

The interlocking tongue-and-groove system at the joints acts as a thermal break, ensuring sustained interior low temperature and reducing energy consumption, which in turn lowers operational cost significantly. Our high-quality materials come with a warranty ranging from 1 to 5 years, providing a strong assurance of long-term usability.

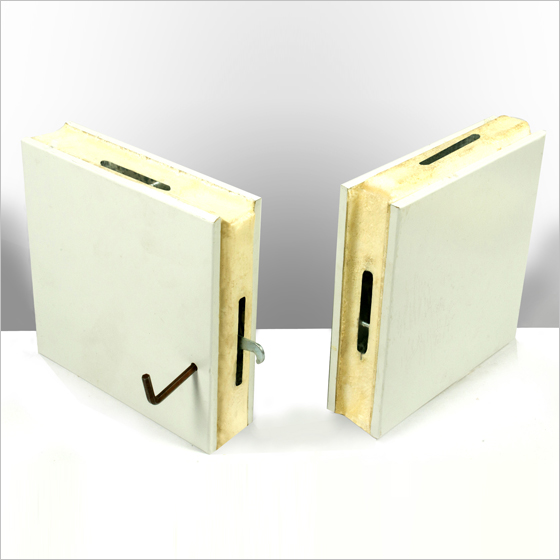

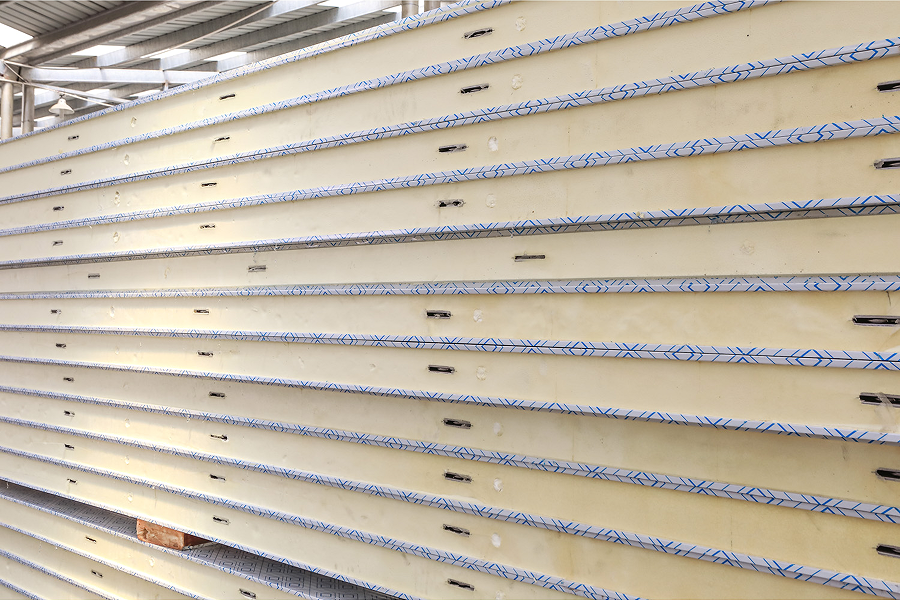

Additionally, we offer another type of manually foam cam lock sandwich panel, which incorporates durable zinc-coated cam locks embedded within. Coupled with the tongue-and-groove system, this design enhances the sealing effectiveness. The density of PU & PIR can reach 40-42kgs/M3 and with customer’s options available exceeding 45kgs/M3 to meet higher standards.

The features of Yuyan cold room panels

• High thermal conductivity & Climate-controlled
• Excellent Corrosion Resistance, Airtight and Watertight properties
• Quick Installation & Fire Resistance
• Customizable to fit the dimensions
• A variety of surface options to be available

Surface Option of Yuyan Cold Room Panels

Yuyan cold room panels are available in three surface styles: flat, large ribbed and small corrugated. The standard surface material is pre-pained high-galvanized steel sheet, with thickness options including 0.4mm up to 1.0mm.

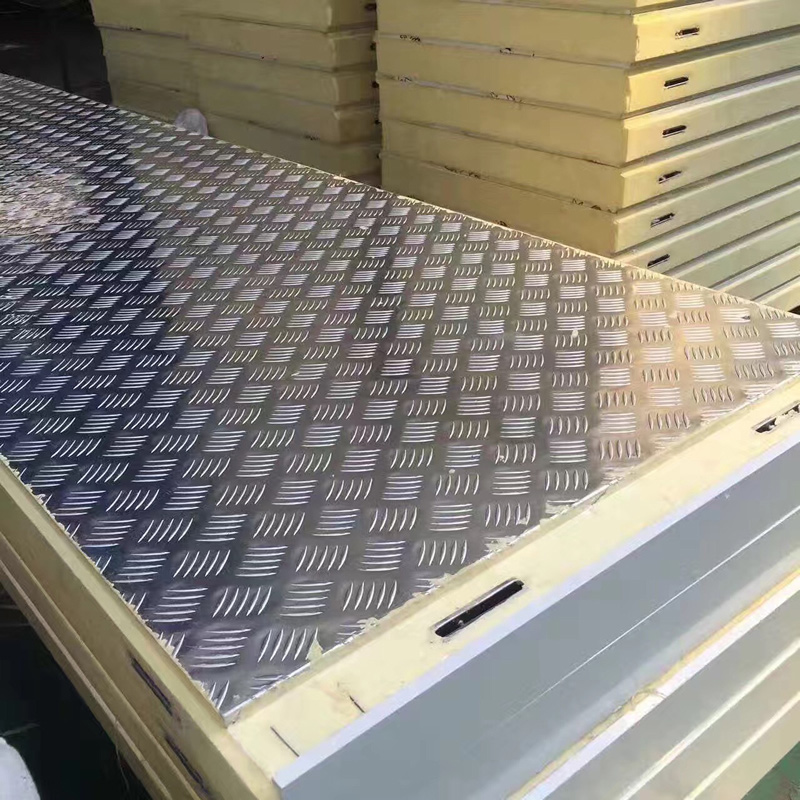

You can also select SUS 304/316 or Aluminum Embossed Stucco Sheet for the surface of Yuyan cold room panels and all materials are waterproof, corrosion-resistant and made of lightweight materials with a long service life.

Controlled Environments of Yuyan Cold Room Panels

The use of pentane in the production process of Yuyan cold room panels has significantly improved the polyurethane foaming process. Compared to traditional polyurethane foam methods, it provides greater thermal resistance and represents a substantial step forward in environmental protection.

The Yuyan cold room panels robust tongue-and-groove interlocking system ensures tight connections without leaks, minimizing thermal bridging. This results in optimized energy efficiency and thermal control in cold room facilities, providing an outstanding solution for maintaining energy conservation.

Different Types of Yuyan cold room panels
